Teflon Twisted Motor Lead for Grundfos SQ/SQE Submersible Pumps

#12 AWG 2 conductor plus ground Teflon Twisted Grundfos SQ/SQE submersible pump cable, available in 25 foot increments. Teflon insulated cables exhibit very high cut through and abrasion resistance, chemical resistance, and continuous service temperatures of 150C per UL.

Specifications:

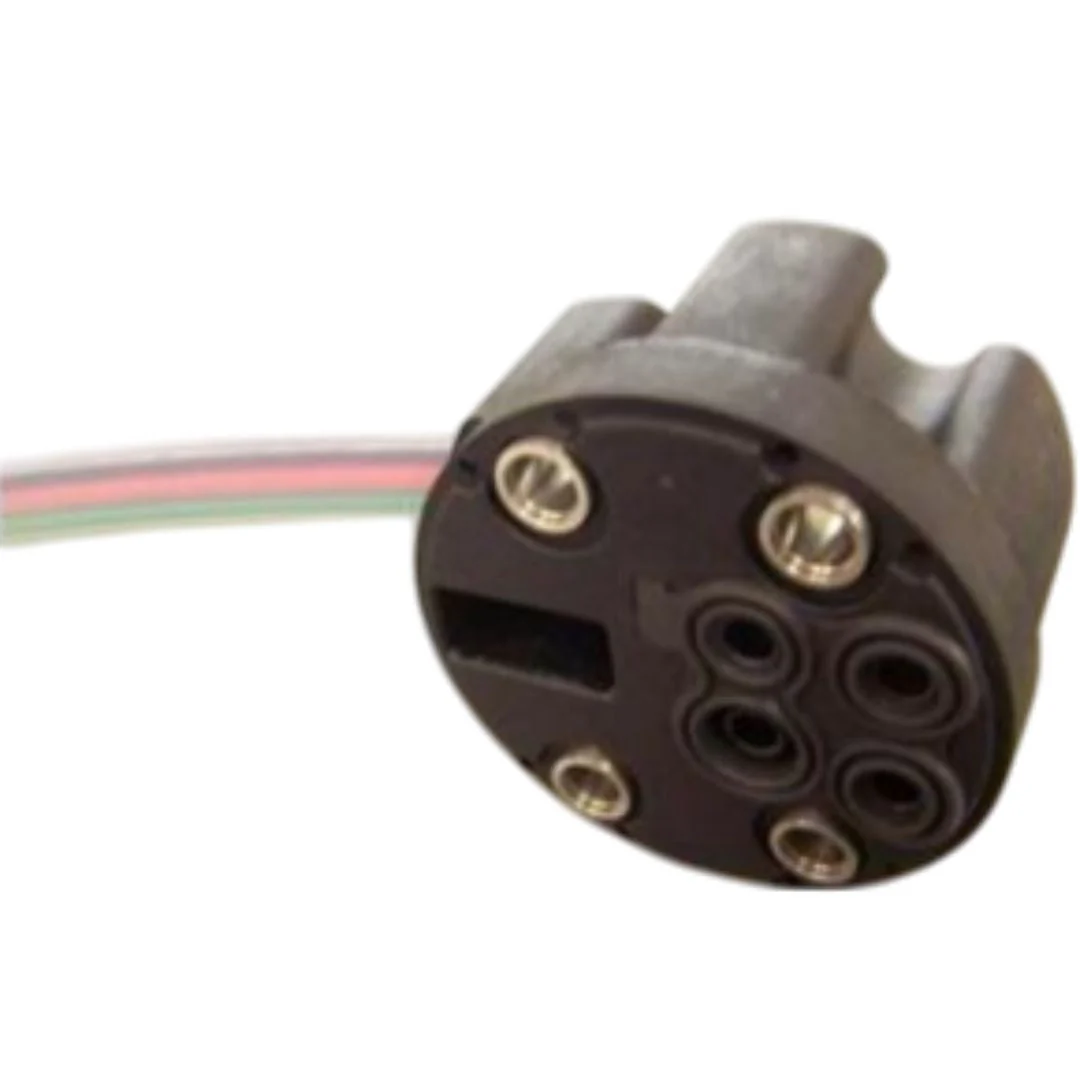

CONSTRUCTION: Rediflo3 Cap / Plug pvcf Plastic W/ epoxy Mounting
CONDUCTORS: 12 AWG 19/.0185 TPC
INSULATION: Teflon (FEP) .032” wall nom.

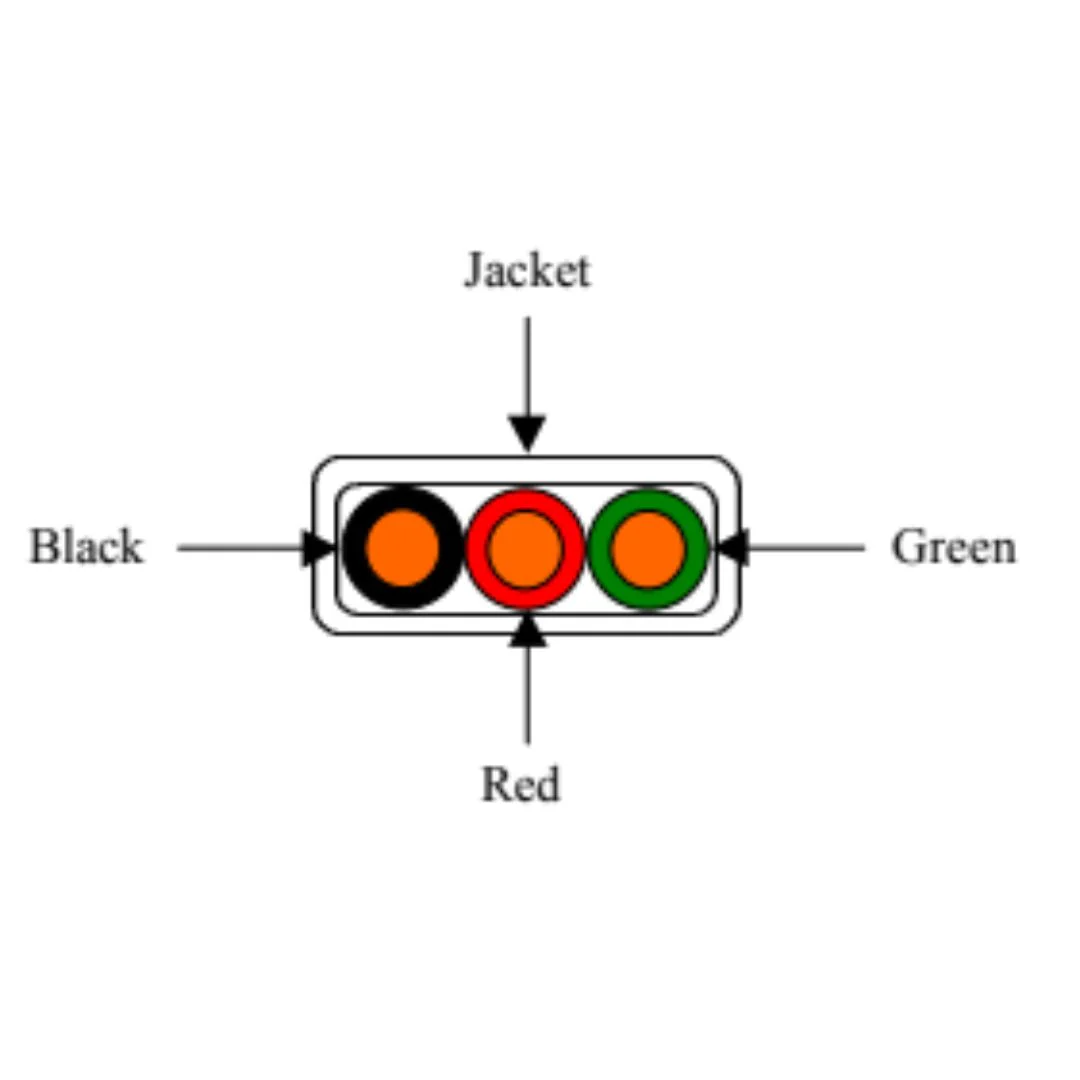

COLOR CODE: Black, Red, Green
OVERALL DIAMETER: .3O8” nom



Resources:

Teflon Twisted Motor Lead Datasheet
