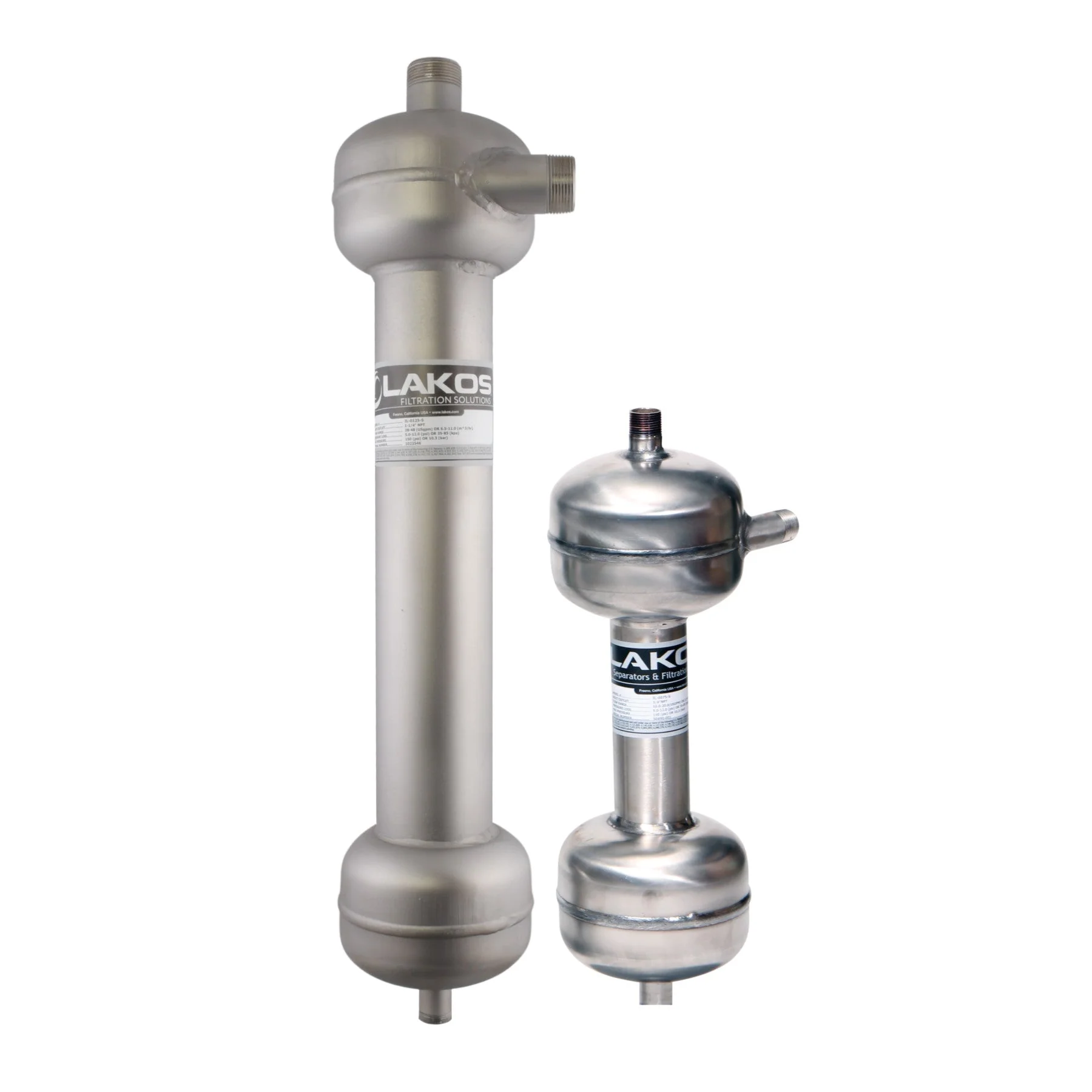

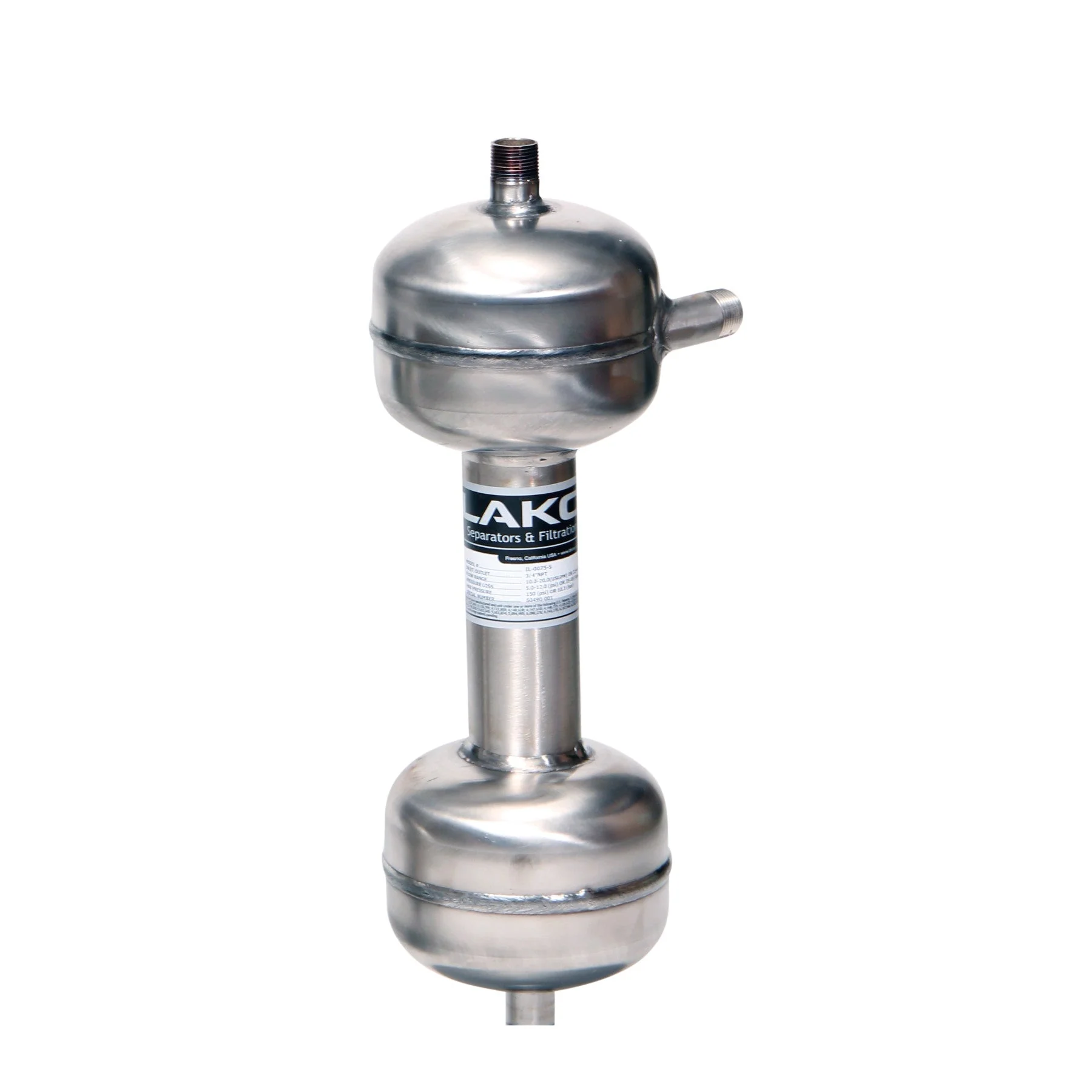

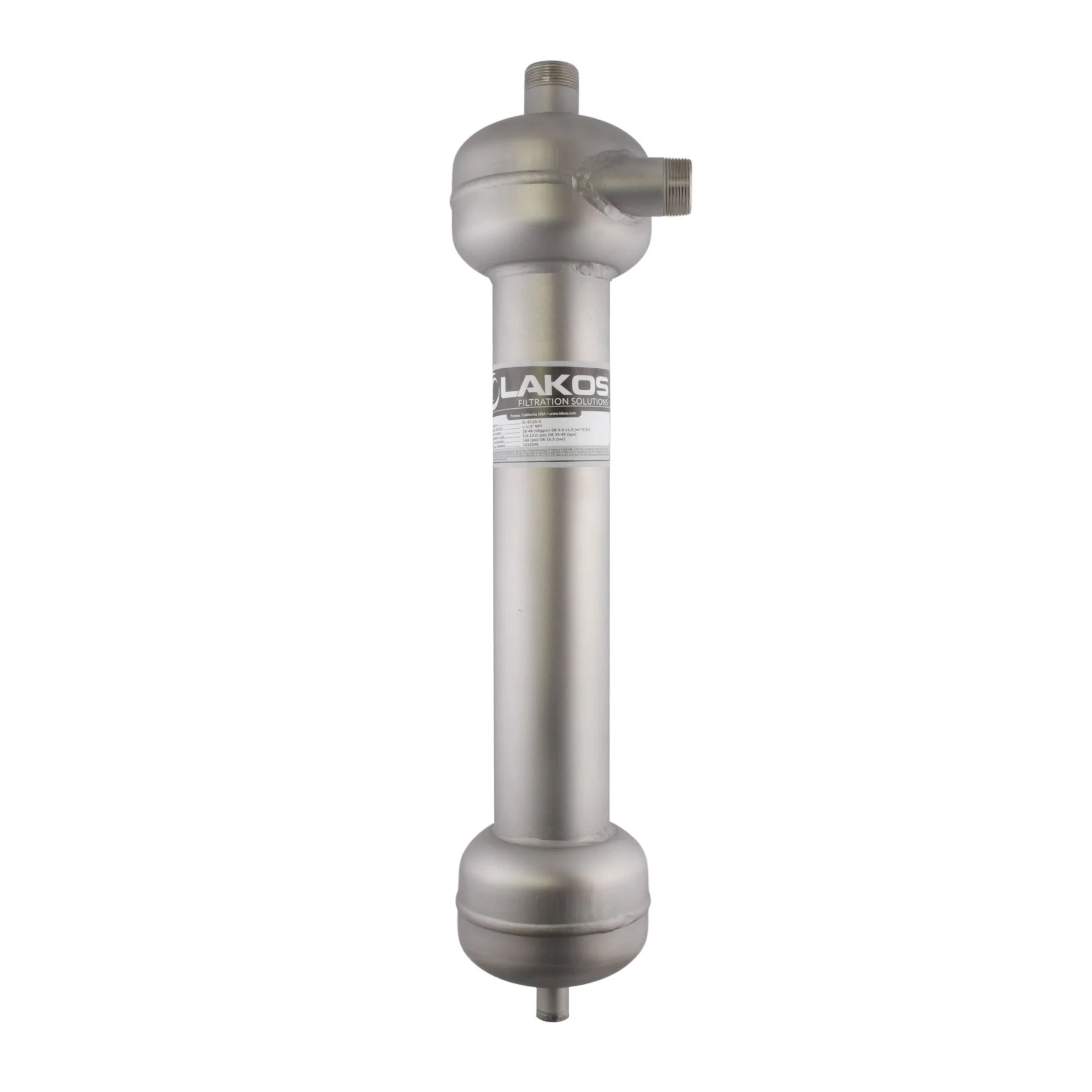

Lakos Filtration ILS-0250 Stainless Steel Centrifugal Separator, 95-155 GPM

Ideally suited for smaller system applications, side-stream installations, and individual equipment protection. LAKOS ILB-ILS Centrifugal Separators are the popular choice for removing sand, grit, and other fine solids from sources of process water/liquid systems, removing up to 98% of particles 74 microns and larger. When used for heavier solids like metal chips and lead you can expect even better results.

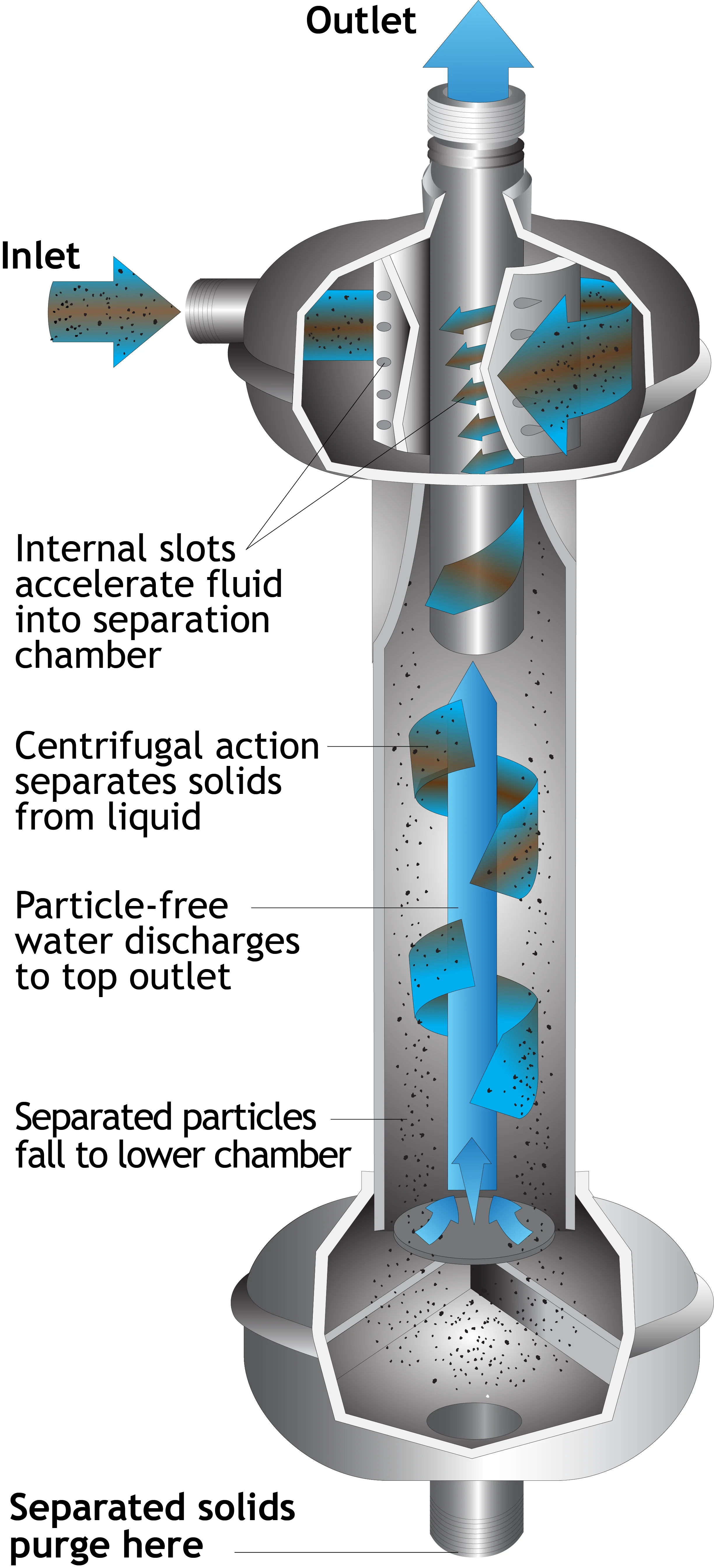

LAKOS ILB-ILS unique centrifugal style of filtration is not only super efficient, but also trouble-free in its design.

Flow Range: 3 – 290 US GPM (0.7 – 66 m³/hr)
Maximum Pressure: 150 psi (10.3 bar)

Features and Benefits:

• No moving parts to wear out or replace
• No screens, cartridges, cones, or filter elements to clean or replace
• Centrifugal Separator patented technology
• No backflushing or downtime requirements
• Pressure loss as low as 5 psid
