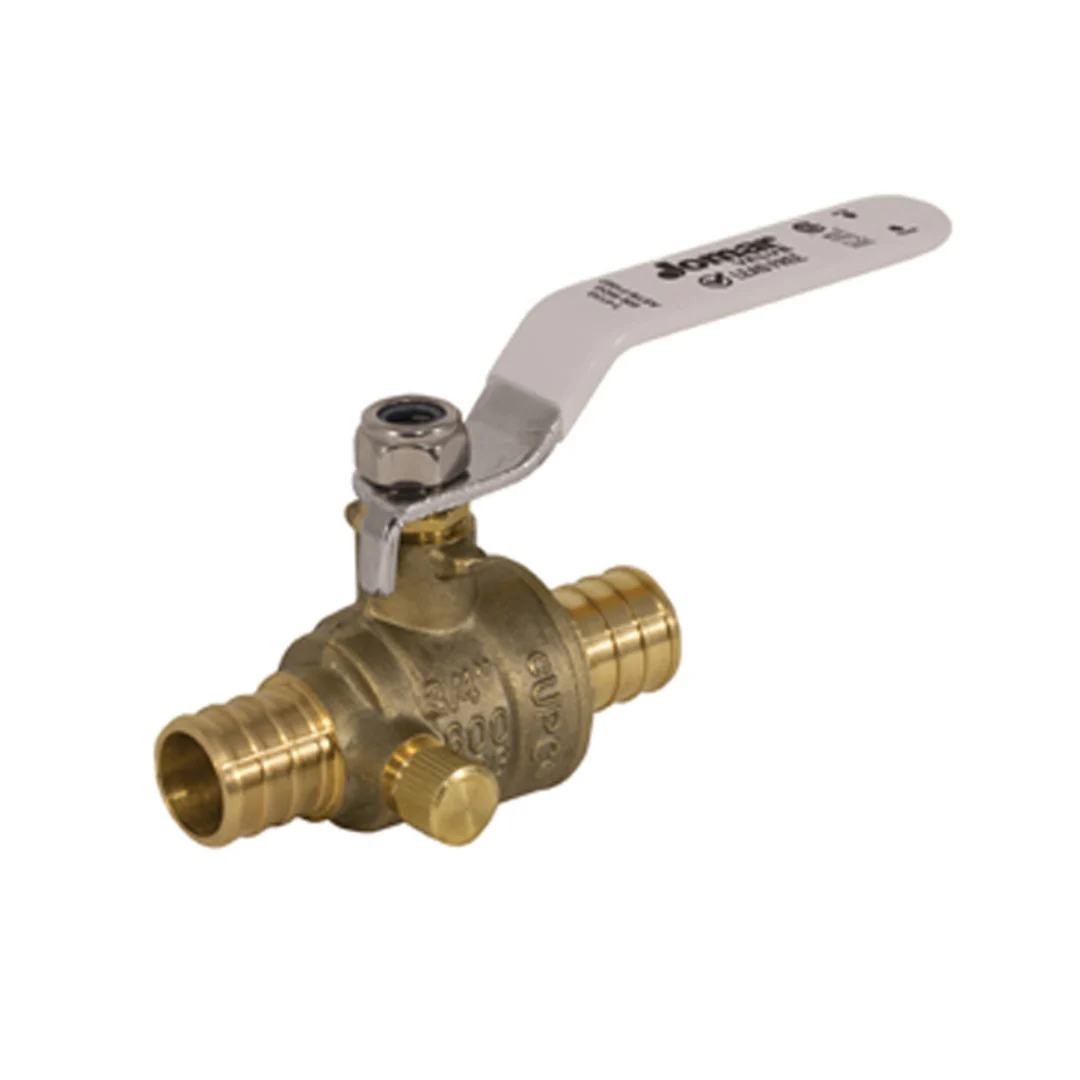

Jomar 3/4 Inch T-413G Series Lead Free Brass 2-Piece Crimp Pex Connection Ball Valves with Drain and Stainless Steel Trim - Pack of 4

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

These 3/4" T-413G Series 2-piece ball valves with expansion pex connections are rated for 600 CWP and are NSF 61/NSF 372 certified. Made from lead free brass with stainless steel trim, they feature a lever handle, a blow-out proof stem and a built-in drain.

Each pack includes 4 103-544PG brass ball valves with stainless steel ball and stem.

Features

• Dezincification Resistant Brass Alloy
• Stainless Steel Trim
• Wetted Surfaces Contain Less than .25% Lead Content
• Gland Follower and Single O-Ring Stem Design
• Blow-Out Proof Stem
• 100% Leak Tested
• Drop Ears for Easy Installation
• IAPMO Certified - NSF 61 / NSF 372
• ASTM F1807



Specifications

MPN	103-544PG
Size	3/4"
Connection Type	Crimp Pex
Handle Type	Lever
Pressure Rating	600 CWP
Body Material	Lead Free Brass
Trim Material	Stainless Steel
Seat Material	PTFE
Seal Material	Buna-N

Certifications

IAPMO Certified	NSF 61-8 NSF 372 IAPMO/ANSI Z1157-2014 NSF/ANSI 14-2014
CSA Certified	ASME A112.4.14

• ASTM F1807
• RoHS Compliant
