Jomar JF-100RVG 3/4" Crimp Pex Connection Lead Free Brass 2-Piece Ball Valves with 100 PSI Thermal Expansion Relief & Stainless Steel Trim - Pack of 2

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

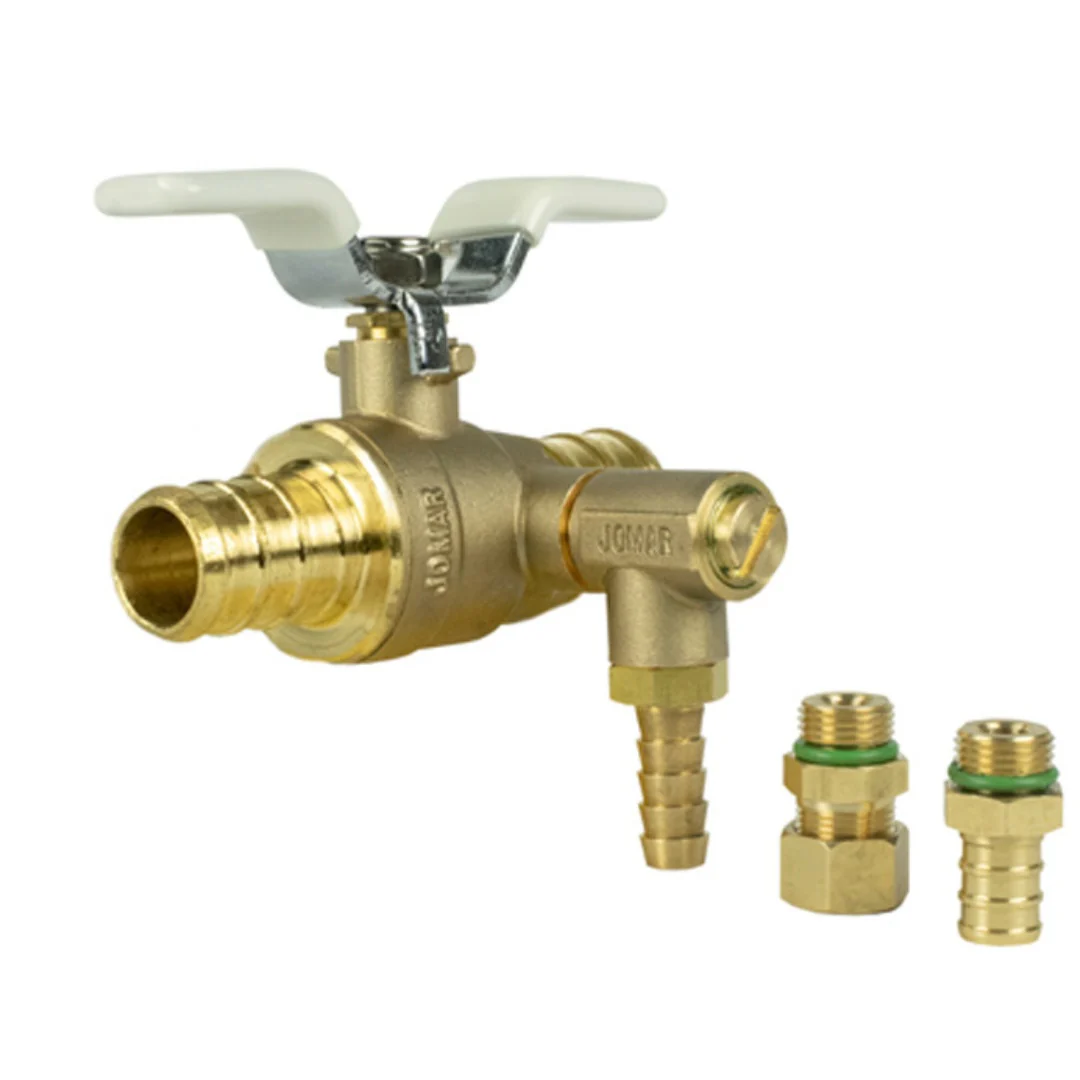

These 3/4" JF-100RVG CRIMP PEX Series 2-piece ball valves with full port Crimp Pex connections are rated for 600 WOG and are NSF 61/NSF 372 certified. Made from lead free brass with stainless steel trim, they feature a lever handle and an 100 PSI thermal expansion relief valve with 3/8" barb, 1/2" pex, and 3/8" compression fittings.

Each pack includes 2 103-100RVSSG brass ball valves with connection fittings.

Features

• Dezincification Resistant Brass Alloy
• Stainless Steel Ball and Stem
• Wetted Surfaces Contain Less than .25% Lead Content
• Side Discharge
• Includes Connections: 3/8″ Barb, 1/2″ Pex, 3/8″ Compression Fittings
• IAPMO Certified – NSF 61 & NSF 372
• IAPMO Certified – CSA B125.3 & IGC128
• ASTM F1807



Specifications

MPN	103-100RVSSG
Size	3/4"
Connection Type	Crimp Pex
Handle Type	Lever
Pressure Rating	600 WOG
Body Material	Lead Free Brass
Trim Material	Stainless Steel
Seat Material	PTFE
Seal Material	FKM

Certifications

IAPMO Certified	ANSI/NSF 61-08 ANSI/NSF 372 CSA B125.3 CSA IGC128
Uniform Plumbing Code (cUPC)	IAPMO/ANSI Z1157-2014 NSF/ANSI 14-2014

• RoHS Compliant
• MSS SP-110
