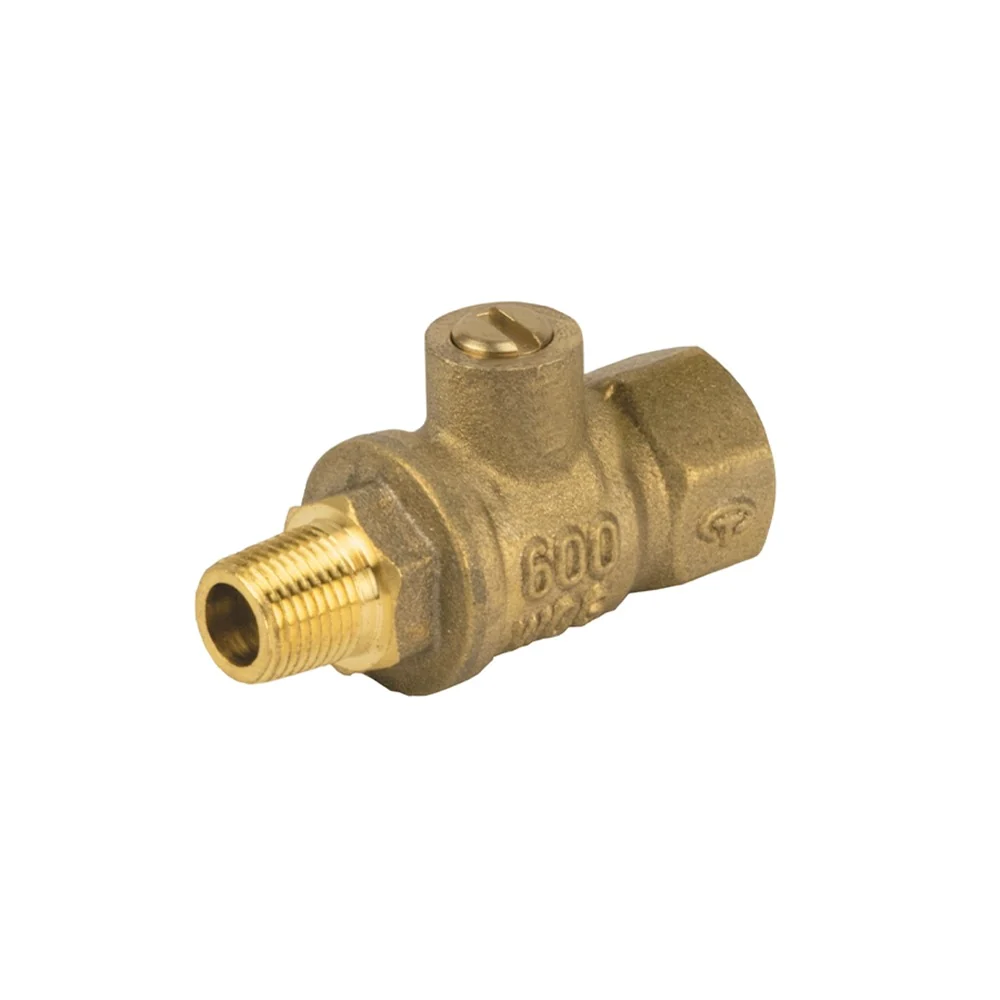

Jomar 100-396G 8 Pack - 1/8" FIP x 1/4" MIP Connection Lead Free Brass Mini Ball Valves with Screwdriver Slot & Stainless Steel Trim

Product image 1

Jomar 100-396G 8 Pack - 1/8" FIP x 1/4" MIP Connection Lead Free Brass Mini Ball Valves with Screwdriver Slot & Stainless Steel Trim

Jomar T-83CG 1/8" FIP x 1/4" MIP Connection Lead Free Brass 2-Piece Mini Ball Valves with Screwdriver Slot & Stainless Steel Trim - Pack of 8

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

These 1/8" FIP x 1/4" MIP T-83CG Series 2-piece mini ball valves with full port threaded FIP x MIP connections are rated for 600 WOG and are NSF 61/NSF 372 certified. Made from lead free brass with stainless steel trim, they feature a screwdriver slot and a 100% leak tested, blow-out proof stem.

Each pack includes 8 100-396G brass mini ball valves with stainless steel ball and stem.

Features

  • Dezincification Resistant Brass Alloy
  • Stainless Steel Trim
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Large Raised Wrench Flats
  • Blow-Out Proof Stem
  • 100% Leak Tested
  • IAPMO Certified – NSF 61 & NSF 372



Specifications

MPN 100-396G
Size 1/8" FIP x 1/4" MIP
Connection Type Threaded FIP x MIP
Handle Type Screwdriver Slot
Pressure Rating 600 WOG
Body Material Lead Free Brass
Trim Material Stainless Steel
Seat Material PTFE
Seal Material Buna-N



Certifications

IAPMO Certified
  • NSF 61-8
  • NSF 372
  • IAPMO/ANSI Z1157-2014
  • NSF/ANSI 14-2014
  • MSS SP-110
  • ANSI B1.20.1
$26.95

Original: $76.99

-65%
Jomar 100-396G 8 Pack - 1/8" FIP x 1/4" MIP Connection Lead Free Brass Mini Ball Valves with Screwdriver Slot & Stainless Steel Trim—

$76.99

$26.95

Product Information

Shipping & Returns

Description

Jomar T-83CG 1/8" FIP x 1/4" MIP Connection Lead Free Brass 2-Piece Mini Ball Valves with Screwdriver Slot & Stainless Steel Trim - Pack of 8

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

These 1/8" FIP x 1/4" MIP T-83CG Series 2-piece mini ball valves with full port threaded FIP x MIP connections are rated for 600 WOG and are NSF 61/NSF 372 certified. Made from lead free brass with stainless steel trim, they feature a screwdriver slot and a 100% leak tested, blow-out proof stem.

Each pack includes 8 100-396G brass mini ball valves with stainless steel ball and stem.

Features

  • Dezincification Resistant Brass Alloy
  • Stainless Steel Trim
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Large Raised Wrench Flats
  • Blow-Out Proof Stem
  • 100% Leak Tested
  • IAPMO Certified – NSF 61 & NSF 372



Specifications

MPN 100-396G
Size 1/8" FIP x 1/4" MIP
Connection Type Threaded FIP x MIP
Handle Type Screwdriver Slot
Pressure Rating 600 WOG
Body Material Lead Free Brass
Trim Material Stainless Steel
Seat Material PTFE
Seal Material Buna-N



Certifications

IAPMO Certified
  • NSF 61-8
  • NSF 372
  • IAPMO/ANSI Z1157-2014
  • NSF/ANSI 14-2014
  • MSS SP-110
  • ANSI B1.20.1
